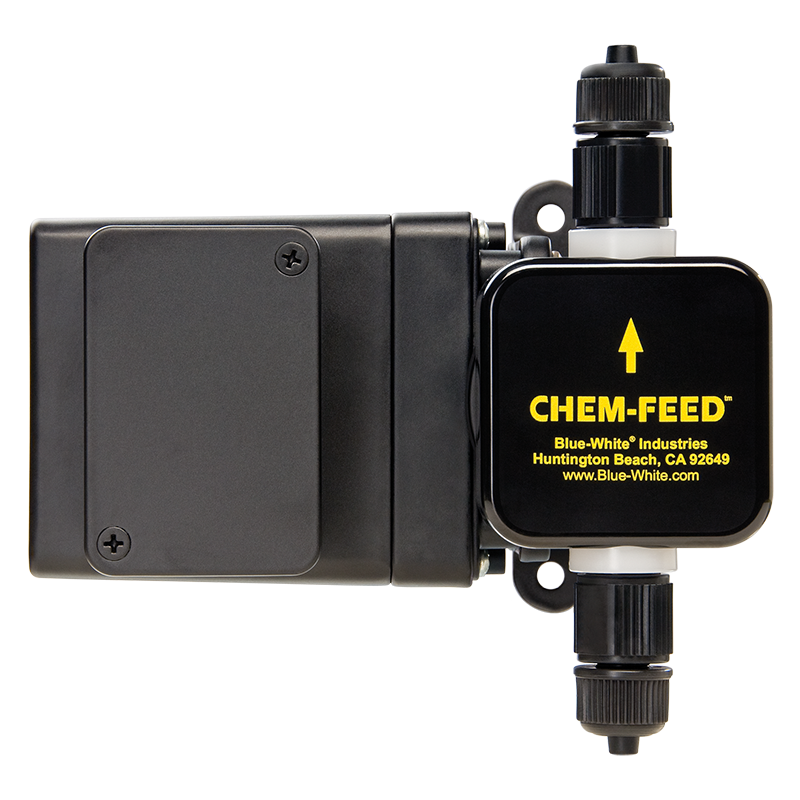

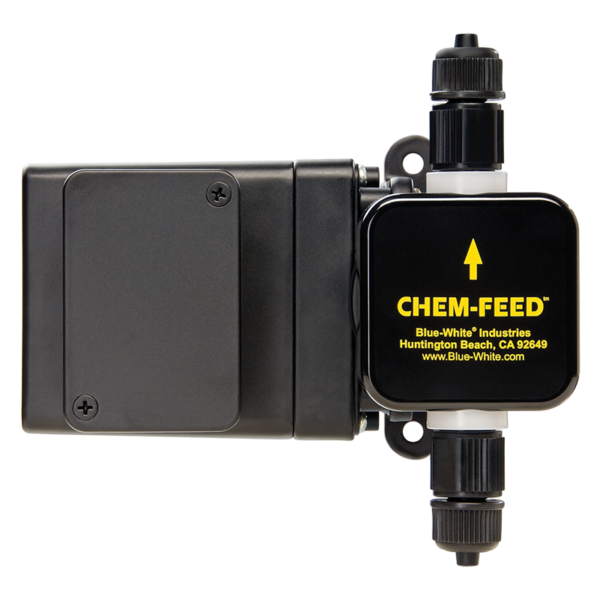

C-600P CHEM-FEED DIAPHRAGM PUMP

• Economical and versatile.
• All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.
• Turndown Ratio is 27:1
• Stroke adjustment from 4-100% permits accurate small injections at a high rate per minute.
• Double-ball inlet and outlet cartridge type check valves
• Diaphragm material = PTFE

Construction

enclosure:

• Durable metal epoxy coated construction

Wetted Parts:

• PTFE coated EP diaphragm
• Double-ball inlet and outlet cartridge type ceramic check valves.
• Chemical resistant PVDF pump head, valve body and fittings, ceramic balls, FKM static seals and TFE/P ball seat orings. No metal springs are used.

Motor

• All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.

Shipping Accessories

• Includes 3/8” OD suction and discharge tubing, Injection fitting with spring-loaded check valve and all mounting
• PVDF suction (foot) valve with FKM and TFE/P o-rings, ceramic check ball and removable polypropylene filter screen.
